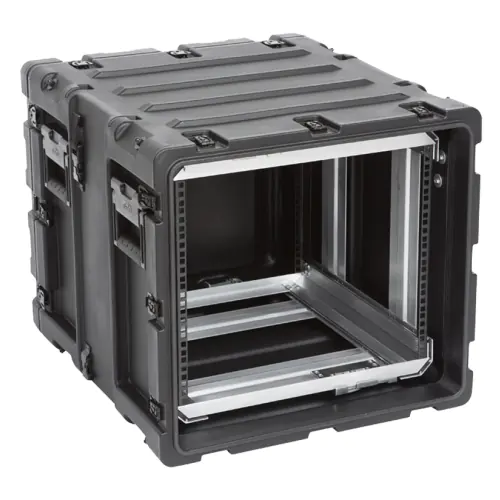

SKB 20 in. Deep 9U Removable Shock Rack
9U 20 in. Removable Shock Rack Transport Case. Lightweight, Shockproof & Watertight Case is Perfect for Protecting Your Sensitive Electronic Equipment During Tranport.
Rack Units: 9U
Depth Front Rail to Rear Rail: 20 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 2 in. Front & Rear
Interior Dimensions: 24 x 19 x 15.75 in.
Exterior Dimensions: 32.3 x 23.9 x 22.3 in.
Weight: 60 Lbs.
Wheels: No Wheels
Details
SKB 9U Removable 20 Inch Deep Shock Rack
SKB’s 3RR Series Removable Shock Rack are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. Molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards, these Shock Racks also include 8 elastomeric shock absorbers which allow for a standard payload range of 40 to 150 lbs (optional extended payload range of 160 to 300 lbs can be accommodated as a special order option). The 20 in. 3RR Series Removable Racks are 20 inches deep from rail to rail with a standard 19 in. rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.
The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2 in. deep front and rear lids to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
The interior of the case features a removable rack with a patent pending "positive lock" latching system that slides open like a file drawer, allowing full access to racked equipment. The interior rack is also completely removable allowing complete frame access for bench integration.
- Completely removable frame for access to bench integration
- Meets or exceeds MIL-STD 810G
- Standard payload range of 40 to 150 lbs
- Optional extended payload range 160 to 300 lbs
- Standard 19 in. rack width per ANSI/EIA-310-C
- Standard rack depth 20 in. rail to rail
- Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
- 2 in. front and rear lids
- Rugged roto-molded shell ensures industry leading strength and impact resistance
- Molded in stacking ribs and lugs are designed to stack with all SKB 3RR & 3RS cases, as well as competitive manufacturer cases
- Recessed black powder coated stainless steel hardware
- Four (4) comfort grip spring loaded lift handles
- Automatic pressure relief valve (standard)
- Lid hangers (standard)
- Case coupling straps (standard)
- IP67 Certified for protection of dust ingression and water submersion (1 meter submersion for 30 minutes)
- Includes Million Mile Warranty
- Proudly Made in the USA
UPC Code:
3RR-9U20-22B – 789270999572
Note: 3RR 20 in. Shock Racks do not come standard with wheels.
More Information
| SKU | 3RR-9U20-22B |
|---|---|
| Brand | SKB Cases |
| Interior (LxWxH) | 24 x 19 x 15.75 in. |
| Exterior (LxWxH) | 32.3 x 23.9 x 22.3 in. |
| Carton Dimensions | 33 x 24.5 x 23.5 in. |
| Weight | 60 Lbs. |
| Color | Black |
| Available Colors | Black - Standard. Desert Tan and OD Green - Special Order. |
| Rack Units | 9U |
| Rack Depth | 20 in. |
| Depth Front Rail To Back Lid | 24.5 in. |
| Rail Type | Square |
| Lid Depth | 2 in. Front / 2 in. Rear |
| Wheels | No Wheels |
| Handle | 4 Comfort Grip Spring Loaded Lift Handles |
| Latches | Recessed Heavy Duty Twist Latches |
| Hinges | Molded-In Hinges |
| Shock Absorbers | Yes |
| Stackable | Yes |
| Standard Payload | 40 to 150 Lbs. |
| Optional Payload | 160 to 300 Lbs (3SKB-SA) |
| Body Material | Linear Medium Density Polyethylene (LMDPE) |
| Manufacturing Process | Roto Molded |
| Water Resistance | Water Resistant |
| Rating | ATA Rated |
| Certifications | ANSI/EIA-310-C, IP67, MIL-STD 810G |
| Transporting and Shipping Options |  Small Package Service refers to cases that can ship via UPS, Fedex or USPS and would be charged a standard rate based on the weight. Cases must weigh less than 150 lbs. and meet certain dimensional requirements. Always check the carrier’s small package policy for exact limits. Oversized Checked Baggage refers to cases that can be checked on the airlines but could incur oversize fees. Typically oversize fees can be applied to cases between 50-100 lbs and between 63-126 inches overall. Overall dimensions of the case are determined by adding the length, width and height together. Always check your airline’s specific policy, as size and weight limits can vary by carrier and route. |
