SKB 20 in. Deep 7U Static Shock Rack
Made in USA refers to a product that is virtually completely made in the United States of America. Any components not produced in the United States is negligible.
A Lifetime Warranty refers to a guarantee that the case is fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. If your case breaks, we will supply replacement parts, repair the case, or replace your case for as long as you own it. Some conditions apply, please see individual manufacturer’s warranties.
Satisfaction Guaranteed is a promise that we ensure our customers are satisfied with the quality of the products they purchase from us and that they are free from any defects in materials or workmanship. We do our absolute best to be sure everyone gets satisfactory service and support.
Water-resistant means that a case can resist the penetration of water to some degree but is not completely impervious. It offers limited protection against moisture—such as rain, splashes, or brief exposure—but is not designed for full submersion.7U 20 in. Static Shock Rack Transport Case. Lightweight, Shockproof & Watertight Case is Perfect for Protecting Your Sensitive Electronic Equipment During Tranport.
Rack Units: 7U
Depth Front Rail to Rear Rail: 20 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 2 in. Front & Rear
Interior Dimensions: 24 x 19 x 12.25 in.
Exterior Dimensions: 32.3 x 23.9 x 18.8 in.
Weight: 46.5 Lbs.
Wheels: No Wheels

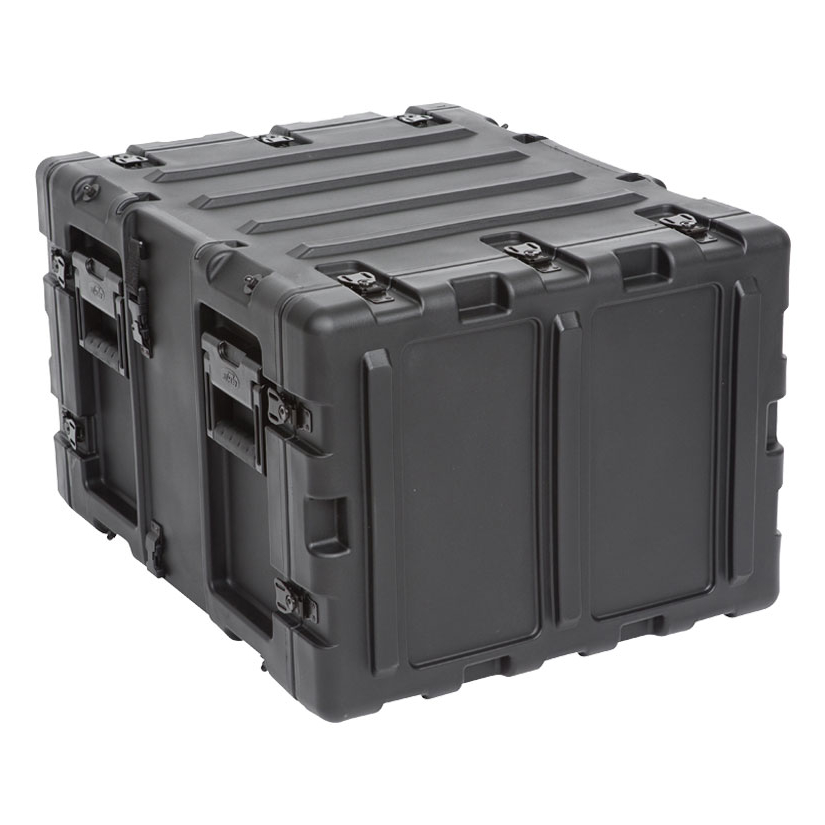

SKB 7U 20 Inch Deep Static Shock Rack
SKB’s 3RS Series Static Shock Rack Cases are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment. The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs to 150 lbs in a standard configuration (optional extended payload range of 160 lbs to 300 lbs can be accommodated as a special order option). The interior frame and shocks provide adequate sway for ambient air circulation and heat dissipation.
3RS Series cases are molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards. Measuring 20 in. deep from rail to rail with a standard 19 in. rack width per ANSI/EIA-310-C specification, 3RS Shock Racks also feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

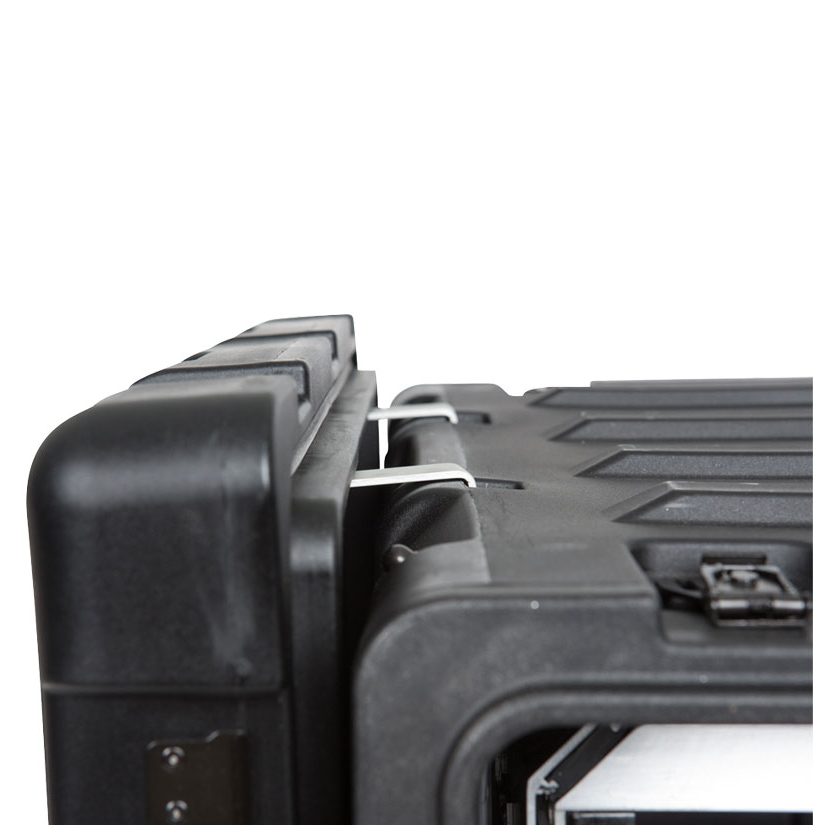

The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2 in. deep front and rear lids to accommodate rack gear that is longer than 20 inches. Molded-in stacking ribs and lugs are designed to stack with all SKB 3RR and 3RS cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.
- Meets or exceeds MIL-STD 810G
- IP67 Certified for protection of dust ingression and water submersion (1 meter submersion for 30 minutes)
- Standard payload range of 40 to 150 lbs
- Optional extended payload range 160 to 300 lbs
- Standard 19 in. rack width per ANSI/EIA-310-C
- Standard rack depth 20 in. rail to rail
- Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
- 2 in. front and rear lids
- Rugged roto-molded shell ensures industry leading strength and impact resistance
- Molded in stacking ribs and lugs are designed to stack with all SKB 3RR & 3RS cases, as well as competitive manufacturer cases
- Recessed black powder coated stainless steel hardware

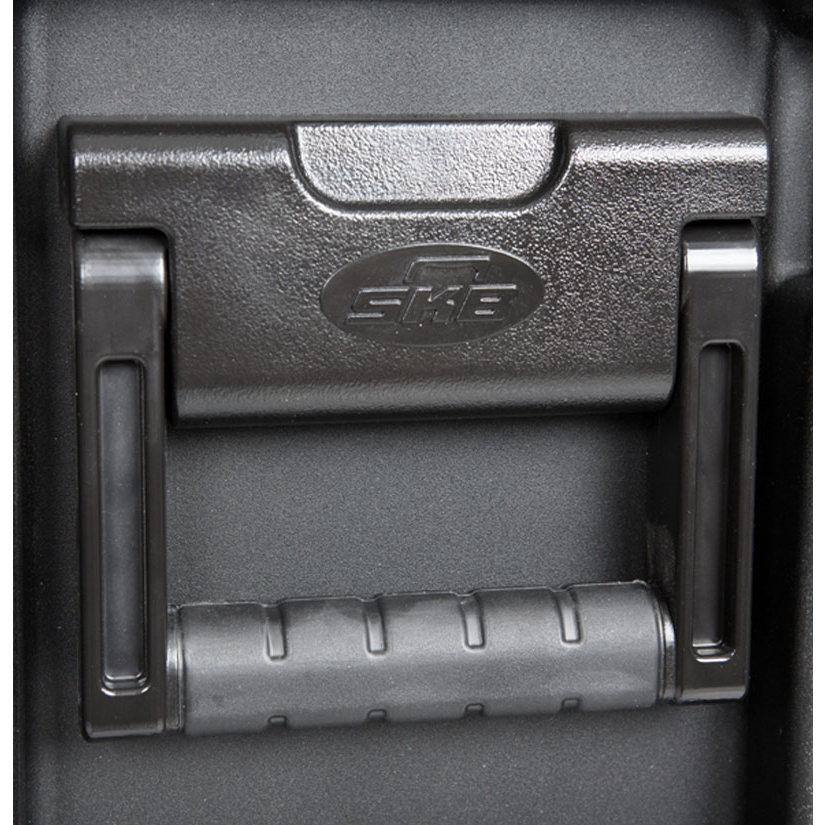

- 4 comfort grip spring loaded lift handles
- Automatic pressure relief valve (standard)
- Lid hangers (standard)

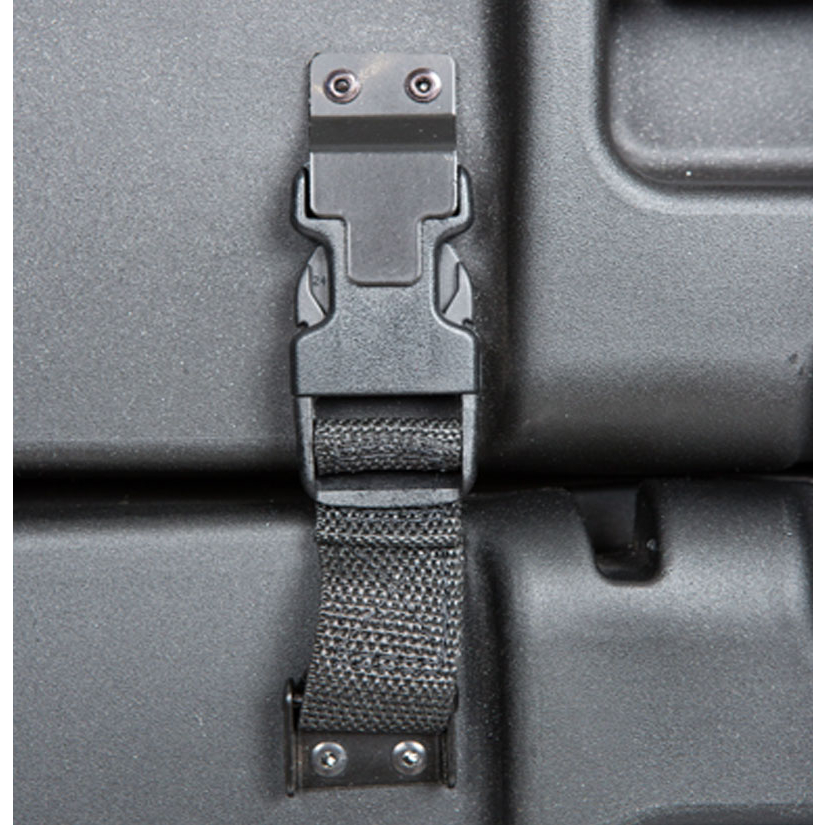

- Case coupling straps (standard)
- Includes Million Mile Warranty
- Proudly Made in the USA
UPC Code:
3RS-7U20-22B – 789270999480
Note: 3RS 20 in. Shock Racks do not come standard with wheels.
| SKU | 3RS-7U20-22B |
|---|---|
| Brand | SKB Cases |
| Interior (LxWxH) | 24 x 19 x 12.25 in. |
| Exterior (LxWxH) | 32.3 x 23.9 x 18.8 in. |
| Carton Dimensions | 33 x 24.5 x 19.75 in. |
| Weight | 46.5 Lbs. |
| Color | Black |
| Available Colors | Black - Standard. Desert Tan and OD Green - Special Order. |
| Rack Units | 7U |
| Rack Depth | 20 in. |
| Depth Front Rail To Back Lid | 24.5 in. |
| Rail Type | Square |
| Lid Depth | 2 in. Front / 2 in. Rear |
| Wheels | No Wheels |
| Handle | 4 Comfort Grip Spring Loaded Lift Handles |
| Latches | Recessed Heavy Duty Twist Latches |
| Hinges | Molded-In Hinges |
| Shock Absorbers | Yes |
| Stackable | Yes |
| Standard Payload | 40 to 150 Lbs. |
| Optional Payload | 160 to 300 Lbs (3SKB-SA) |
| Body Material | Linear Medium Density Polyethylene (LMDPE) |
| Manufacturing Process | Roto Molded |
| Water Resistance | Water Resistant |
| Rating | ATA Rated |
| Certifications | ANSI/EIA-310-C, IP67, MIL-STD 810G |
| Transporting and Shipping Options |  Small Package Service refers to cases that can ship via UPS, Fedex or USPS and would be charged a standard rate based on the weight. Cases must weigh less than 150 lbs. and meet certain dimensional requirements. Always check the carrier’s small package policy for exact limits. Oversized Checked Baggage refers to cases that can be checked on the airlines but could incur oversize fees. Typically oversize fees can be applied to cases between 50-100 lbs and between 63-126 inches overall. Overall dimensions of the case are determined by adding the length, width and height together. Always check your airline’s specific policy, as size and weight limits can vary by carrier and route. |
No interior options available for this product.
SKB 3RS-7U20-22B Product DatasheetNo videos available for this product.
SKB CASES LIFETIME WARRANTY
SKB brand hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means, if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. Electronic components in SKB brand hardshell pedalboard systems are warranted for five years from date of purchase. Soft cases and gig bags are warranted for one year from date of purchase. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. SKB hardshell cases are warranted for life to the original owner only. Cases used rental purposes, used by institutions or schools, modified or used cases are not covered by this warranty. To request a return authorization for a warranty claim, please contact our Customer Service Department at (800) 783-0087
SKB SOFT PRODUCT WARRANTY
SKB Soft Products are fully warranted to the original owner against defects in materials and craftsmanship for one year from purchase. Any defects in workmanship will be covered by SKB. Damages due to accident, improper care, negligence or normal wear, where SKB is not at fault, are not covered on Soft Products. Freight cost to SKB Corporation is the responsibility of the customer. SKB will pay the return freight for warranty product shipped back to the customer.
TRUSTED BY THE U.S. GOVERNMENT & FORTUNE 500 COMPANIES:
WHAT OUR CUSTOMERS ARE SAYING:
"Exceptional Quality and Service"
We've been sourcing hard cases and multi-laptop transport cases for our IT deployment teams, and this company has exceeded expectations. The quality is unmatched—durable, secure, and clearly made for professionals. Their customer service team is responsive, knowledgeable, and genuinely committed to helping. Highly recommend for any company needing a quality shipping case.
- Procurement Manager, Federal Contractor
"The Only Case Supplier We Trust"
We use their cases for secure field deployments, and they hold up to the toughest environments. Our reps always get quick answers and real solutions from their support team. Great partner for anyone needing rugged, high-quality shipping and transport options.
- IT Director, Defense Contractor
"Built for Professionals - Built to Last"
We ordered multiple cases to secure sensitive equipment and laptops. Not only did they arrive quickly, but the quality was outstanding. Custom foam inserts were a game-changer for our workflow. Cases came with a lifetime warranty. And any time we’ve had a question, their support team handled it fast and professionally.
- Facilities Manager, National Utility Company
"Top-Tier Cases and Even Better Support"
We needed laptop transport cases that could meet strict government transport standards. These cases were spot-on—secure, organized, and travel-ready. I was especially impressed by how proactive and helpful the customer support was. Their team helped us customize our order, and the process was smooth from start to finish. A great experience all around. Our organization will absolutely reorder.
- Logistics Coordinator, Municipal IT Tech Department
WHY CHOOSE SPECIALTY CASES?

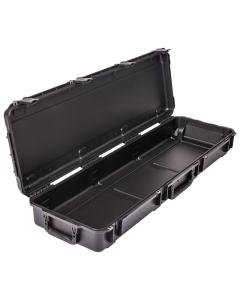

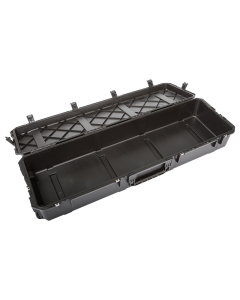

SKB iSeries 3i 5014-6 Wheeled Shipping Case w/ Empty Interior
Review by Kelley

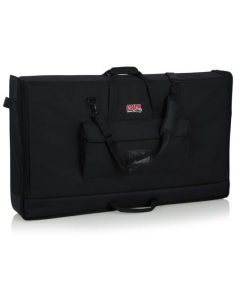

Gator Large Padded LCD Transport Bag
Review by Travel guy

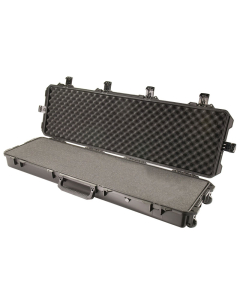

Pelican iM3300 Long Storm Wheeled Case with Foam
Review by Tom2sail

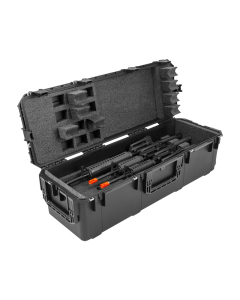

SKB iSeries Field-Ready 4 M4/M16 Rifle Locker with Optics and Ammo Storage
Review by Bubba Gump

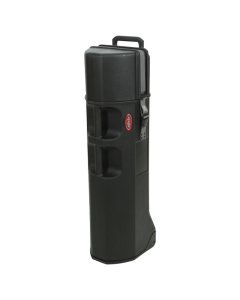

SKB Roto-Molded 37 in. Tripod Case w/ Wheels
Review by Wendy

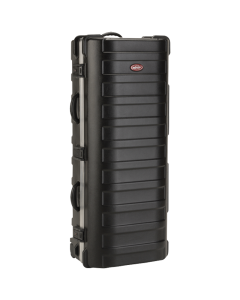

SKB H5020W Rail Pack Utility Case w/ Wheels
