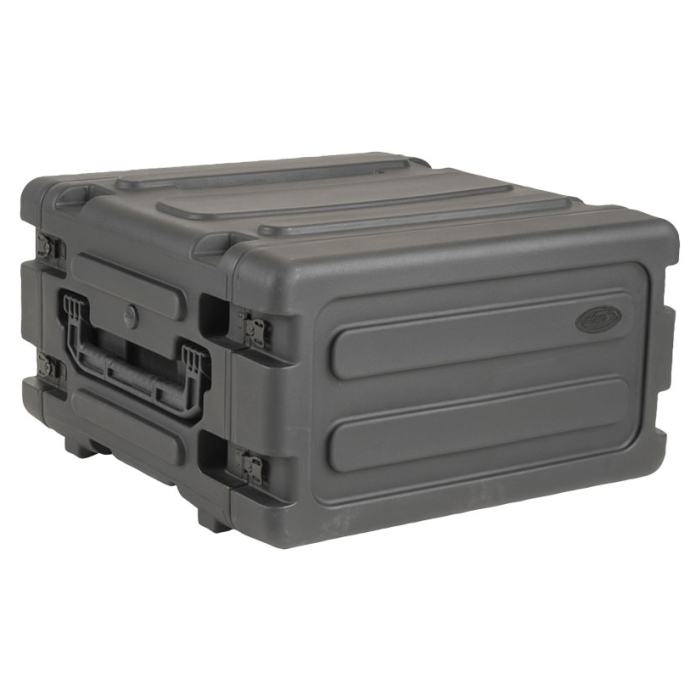

20 in. 4U Roto Shockmount Rolling Rack


4U 20 in. Roto Shockmount Rolling Rack Transport Case. Lightweight, Shockproof & Water Resistant Case. The 3SKB-R04U20W is an SKB shockmount case with the mobility of a luggage cart! 4U height, and 20 in. rail to rail depth for your valuable equipment.

Rack Units: 4U
Depth Front Rail to Rear Rail: 20 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 2.25 in.
Interior Dimensions: 20 x 19 x 7 in.
Exterior Dimensions: 28.5 x 28 x 16 in.
Weight: 44.25 Lbs.
Wheels: Caster Wheels

SKB Rack Case Colors

20 in. 4U Roto Shockmount Rolling Rack
20 in. 4U Roto Shockmount Rolling Rack 20 in. 4U Roto Shockmount Rolling Rack 20 in. 4U Roto Shockmount Rolling Rack 20 in. 4U Roto Shockmount Rolling Rack 20 in. 4U Roto Shockmount Rolling Rack 20 in. 4U Roto Shockmount Rolling Rack

SKB 4U 20 Inch Deep Roto Shockmount Rolling Rack

Imagine a rack case with the mobility of a luggage cart, and you get SKB’s rolling shockmount rack case! These cases allow easy transport of your rackmount gear, eliminating the need for caster wheels, or needing an extra hand to lift a heavy chassis. You’ll have SKB’s Million Mile Warranty along for the ride, too.

One of Specialty Cases’ bestselling products, SKB’s shockmount rack cases are where convenience meets maximum protection. These designs are almost always in stock, ready to go, providing an alternative to custom-build wood racks. And since they are rotationally molded of LMDPE for maximum impact resistance, you’ll lose the worry of your equipment being protected. The latest in shockmount technology is all here, with elastomeric shocks, threaded steel rails, and aluminum cross components for strength and durability.

The Rolling Shockmount Case series incorporates our black powder coated twist latches with locking loops and low profile injection molded pull handle with a 20 inch deep tough shell. The molded design provides extra stiffness in the lids and sides and allows for secure stacking. Rack depth front to rear rail is 20 inches and each lid is 2-1/4 inches deep. Rack rails are pre-threaded for standard 10-32 hardware and the mounting screws are included. Doors are fully usable even when racks are stacked together. Elastomeric shocks protect even the heaviest of loads. Sliding retractable handle, ambient pressure relief valve, oversized snap-down handles on each side, roller blade wheels, and gasket protected front and rear doors are all standard equipment.

The 4U Roto Shockmount Rack Case is produced through a process called rotational molding - a 3-stage heating process that results in evenness all around the edges of the case. The polyethylene material is inserted into a mold, and then gradually rotated until the material sticks to the edges of the mold in an even pattern. Once cooled, this plastic material forms a strong bond that minimizes sagging and potential collapse.

Designed for maximum protection and shock absorbency, it is constructed with adjustable elastomer shock absorbers that deliver the kind of security you want from a shippable case. There is also room to add another layer of shock absorbency. Within the case there is plenty of room for air to circulate – a major consideration for sensitive audio equipment. Rear rails make inserting and removing equipment much easier. In addition, both the front and rear have full sized lids for even more accessibility to the contents.

  • Black powder coated twist latches with locking loops
  • ATA 300 Rated
  • Threaded steel rails
  • Rear rails
  • Built-in wheels
  • Shock and water resistant
  • Low profile injection molded pull handle
  • Mounting hardware is included
  • Molded, stackable design
  • Elastomeric shocks protect even the heaviest of loads
  • Sliding retractable handle
  • Ambient pressure relief valve
  • Oversized snap-down handles on each side
  • Roller blade wheels
  • Gasket protected front and rear doors
  • Provides additional strength for sensitive equipment
  • Built-in wheels making navigating ramps and hallways easier
  • Plenty of room for air circulation within the case
  • Weighs less than traditional wood rack crates
  • Meets most ATA and Military specifications
  • Includes Million Mile Warranty
  • Proudly Made in the USA

UPC Code:
3SKB-R04U20W – 789270090422

More Information
Brand SKB Cases
Interior (LxWxH) 20 x 19 x 7 in.
Exterior (LxWxH) 28.5 x 28 x 16 in.
Carton Dimensions 29 x 29 x 17 in.
Weight 44.25 Lbs.
Color Black
Rack Units 4U
Rack Depth 20 in.
Depth Front Rail To Back Lid 22.25 in.
Rail Type 10/32 in. Threaded
Lid Depth 2.25 in.
Wheels Pull Handle Wheeled
Handle Rubber Over-Molded Spring Loaded Handles
Latches Recessed Heavy Duty Twist Latches
Hinges Compound Hinge System
Shock Absorbers Yes
Stackable Yes
Standard Payload 40 to 150 Lbs.
Optional Payload 160 to 300 Lbs (3SKB-SA)
Body Material Linear Medium Density Polyethylene (LMDPE)
Manufacturing Process Roto Molded
Water Resistance Water Resistant
Rating ATA Rated


SKB brand hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means, if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. Electronic components in SKB brand hardshell pedalboard systems are warranted for five years from date of purchase. Soft cases and gig bags are warranted for one year from date of purchase. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. SKB hardshell cases are warranted for life to the original owner only. Cases used rental purposes, used by institutions or schools, modified or used cases are not covered by this warranty. To request a return authorization for a warranty claim, please contact our Customer Service Department at (800) 783-0087


SKB Soft Products are fully warranted to the original owner against defects in materials and craftsmanship for one year from purchase. Any defects in workmanship will be covered by SKB. Damages due to accident, improper care, negligence or normal wear, where SKB is not at fault, are not covered on Soft Products. Freight cost to SKB Corporation is the responsibility of the customer. SKB will pay the return freight for warranty product shipped back to the customer.
