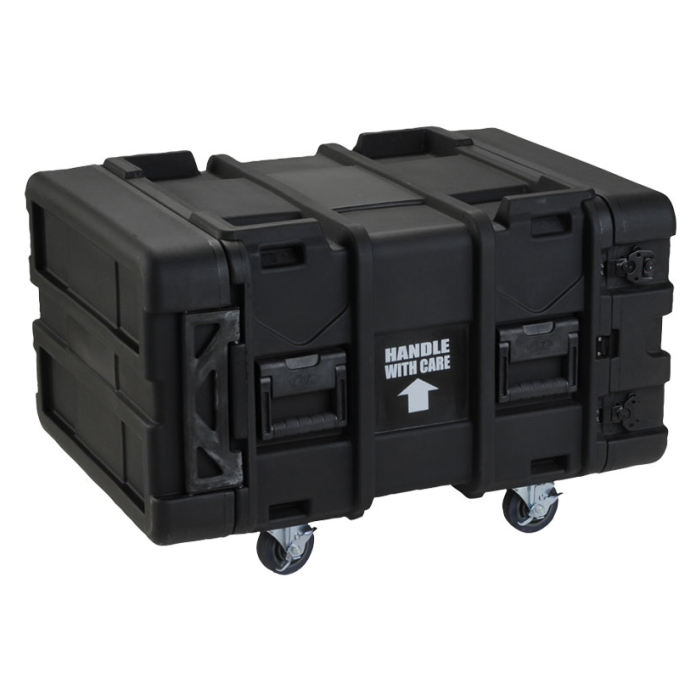

24 in. Deep 6U Roto Shock Rack
6U 24 in. Roto Shock Rack Transport Case. Lightweight, Shockproof & Water Resistant Case. The best choice for your 24 in. server is the 3SKB-R906U24. Providing an ample 6U in height, it allows multiple servers to be implemented for convenience.
Rack Units: 6U
Depth Front Rail to Rear Rail: 24 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 4.5 in.
Interior Dimensions: 24 x 19 x 10.5 in.
Exterior Dimensions: 36 x 26.75 x 19.5 in.
Weight: 66.6 Lbs.
Wheels: Caster Wheels
SKB 6U 24 Inch Deep Roto Shock Rack
One of Specialty Cases’ bestselling products, SKB’s portable shockmount rack cases are where convenience meets maximum protection. These designs are almost always in stock, ready to go, providing an alternative to custom-build wood racks. And since they are rotationally molded of LMDPE for maximum impact resistance, you’ll lose the worry of your equipment being protected. The latest in shockmount technology is all here, with elastomeric shocks, threaded steel rails, and aluminum cross components for strength and durability. And you’ll be backed by SKB’s famous Million Mile Warranty.
Compound hinge system and field replaceable latches that allows the lid to swing out and completely around to lie flat against the main body of the case, or you can go lid-less with an effortless lift motion and reinstalled with the same ease in seconds.
The front and rear lids are designed to protrude into the base of the case approximately 1 in. and their unique double wall structure makes them incredibly stiff where this intersection occurs. Making this new generation of shock racks mil-spec sealing characteristics with significantly fewer latches than most competition. This allows for rapid deployment in an up-right configuration -- even when stacked.
The 24 in. SKB shock-rack system stacks securely with the wheels on or off and this revolutionary design is also the only shock rack that will open front and back while stacked.
The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eitht (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included.
The 24 in. Deep Roto Shock Rack by SKB is an ATA rated roto-molded shock and water resistant rack with wheels. It‘s front and rear rails are compatible with any 19‘ rack-mountable gear but has been especially designed for deep rack-mounted components such as Dell and Compaq servers. This case is built for impact.
- Includes rear rails, front and rear lid
- Patent compound hinged door system
- Stainless steel key lockable field replaceable latches
- Adjustable elastomer shock absorbering technology
- Stacks securely with the wheels on or off
- Slideout removeable casters standard
- Threaded steel rails
- Mounting hardware in the racks is easy with the provided hardware
- Shock and water resistant
- Gasketed sealed doors
- Automatic ambient pressure relief valve (standard)
- Removable 4 in. casters (standard)
- Recessed latches
- Provisions to add additional shocks
- Roto-molded for strength
- Accommodates Deep Components such as Dell and Compaq servers
- Compound hinged doors with recessed black powder coated stainless steel latches
- Eight adjustable elastomer shock absorbers with provisions to add additional shocks for heavier loads
- Airtight design
- Precise level of shock absorption for any load
- Molded handles provide an easy and secure grasping point
- Controls the harmful effects of shock and vibration
- Military twist hasp, recessed latches
- Meets most ATA and Military specifications
- Includes Million Mile Warranty
- Proudly Made in the USA
3SKB-R906U24 – 789270090620
|Interior (LxWxH)||24 x 19 x 10.5 in.|
|Exterior (LxWxH)||36 x 26.75 x 19.5 in.|
|Carton Dimsensions||36.75 x 27.5 x 20.5 in.|
|Rack Depth||24 in.|
|Depth Front Rail To Back Lid||28.5 in.|
|Rail Type||10/32 in. Threaded|
|Lid Depth||4.5 in.|
|Handle||Rubber Over-Molded Spring Loaded Handles|
|Latches||Recessed Heavy Duty Twist Latches|
|Hinges||Compound Hinge System|
|Standard Payload||40 to 150 Lbs.|
|Optional Payload||160 to 300 Lbs (3SKB-SA)|
|Body Material||Linear Medium Density Polyethylene (LMDPE)|
|Manufacturing Process||Roto Molded|
|Water Resistance||Water Resistant|
