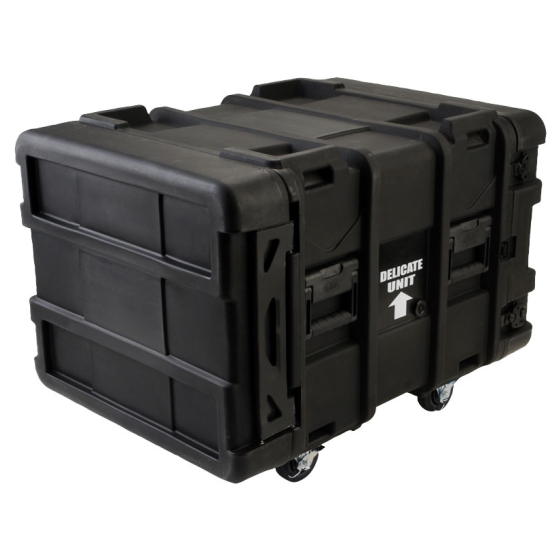

24 in. Deep 8U Roto Shock Rack

$1,379.99
SKU
3SKB-R908U24

8U 24 in. Roto Shock Rack Transport Case. Lightweight, Shockproof & Water Resistant Case. 3SKB-R908U24 is one of SKB’s finest offerings, backed by a lifetime warranty. Perfect for servers up to 24 in., can be shipped and reused again and again.

Rack Units: 8U
Depth Front Rail to Rear Rail: 24 in.
Rackable Width: 19 in. Standard EIA
Lid Depth: 4.5 in.
Interior Dimensions: 24 x 19 x 14 in.
Exterior Dimensions: 36 x 26.75 x 23.25 in.
Weight: 74.65 Lbs.
Wheels: Caster Wheels

SKB Rack Case Colors


24 in. Deep 8U Roto Shock Rack
24 in. Deep 8U Roto Shock Rack 24 in. Deep 8U Roto Shock Rack 24 in. Deep 8U Roto Shock Rack 24 in. Deep 8U Roto Shock Rack 24 in. Deep 8U Roto Shock Rack

SKB 8U 24 Inch Deep Roto Shock Rack

One of Specialty Cases’ bestselling products, SKB’s portable shockmount rack cases are where convenience meets maximum protection. These designs are almost always in stock, ready to go, providing an alternative to custom-build wood racks. And since they are rotationally molded of LMDPE for maximum impact resistance, you’ll lose the worry of your equipment being protected. The latest in shockmount technology is all here, with elastomeric shocks, threaded steel rails, and aluminum cross components for strength and durability. And you’ll be backed by SKB’s famous Million Mile Warranty.

Compound hinge system and field replaceable latches that allows the lid to swing out and completely around to lie flat against the main body of the case, or you can go lid-less with an effortless lift motion and reinstalled with the same ease in seconds.

The front and rear lids are designed to protrude into the base of the case approximately 1 in. and their unique double wall structure makes them incredibly stiff where this intersection occurs. Making this new generation of shock racks mil-spec sealing characteristics with significantly fewer latches than most competition. This allows for rapid deployment in an up-right configuration -- even when stacked.

The 24 in. SKB shock-rack system stacks securely with the wheels on or off and this revolutionary design is also the only shock rack that will open front and back while stacked.

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eitht (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included.

The 24 in. Deep Roto Shock Rack by SKB is an ATA rated roto-molded shock and water resistant rack with wheels. It‘s front and rear rails are compatible with any 19‘ rack-mountable gear but has been especially designed for deep rack-mounted components such as Dell and Compaq servers. This case is built for impact.

  • Includes rear rails, front and rear lid
  • Patent compound hinged door system
  • Stainless steel key lockable field replaceable latches
  • Adjustable elastomer shock absorbering technology
  • Stacks securely with the wheels on or off
  • Slideout removeable casters standard
  • Threaded steel rails
  • Mounting hardware in the racks is easy with the provided hardware
  • Shock and water resistant
  • Gasketed sealed doors
  • Automatic ambient pressure relief valve (standard)
  • Removable 4 in. casters (standard)
  • Recessed latches
  • Provisions to add additional shocks
  • Roto-molded for strength
  • Accommodates Deep Components such as Dell and Compaq servers
  • Compound hinged doors with recessed black powder coated stainless steel latches
  • Eight adjustable elastomer shock absorbers with provisions to add additional shocks for heavier loads
  • Airtight design
  • Precise level of shock absorption for any load
  • Molded handles provide an easy and secure grasping point
  • Controls the harmful effects of shock and vibration
  • Military twist hasp, recessed latches
  • Meets most ATA and Military specifications
  • Includes Million Mile Warranty
  • Proudly Made in the USA

UPC Code:
3SKB-R908U24 – 789270090828

More Information
Brand SKB Cases
Interior (LxWxH) 24 x 19 x 14 in.
Exterior (LxWxH) 36 x 26.75 x 23.25 in.
Carton Dimsensions 36.75 x 27.5 x 24.25 in.
Weight 74.65 Lbs.
Color Black
Rack Units 8U
Rack Depth 24 in.
Depth Front Rail To Back Lid 28.5 in.
Rail Type 10/32 in. Threaded
Lid Depth 4.5 in.
Wheels Caster Wheels
Handle Rubber Over-Molded Spring Loaded Handles
Latches Recessed Heavy Duty Twist Latches
Hinges Compound Hinge System
Shock Absorbers Yes
Stackable Yes
Standard Payload 40 to 150 Lbs.
Optional Payload 160 to 300 Lbs (3SKB-SA)
Body Material Linear Medium Density Polyethylene (LMDPE)
Manufacturing Process Roto Molded
Water Resistance Water Resistant
Rating ATA Rated

SKB CASES LIFETIME WARRANTY

SKB brand hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means, if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. Electronic components in SKB brand hardshell pedalboard systems are warranted for five years from date of purchase. Soft cases and gig bags are warranted for one year from date of purchase. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. SKB hardshell cases are warranted for life to the original owner only. Cases used rental purposes, used by institutions or schools, modified or used cases are not covered by this warranty. To request a return authorization for a warranty claim, please contact our Customer Service Department at (800) 783-0087



SKB SOFT PRODUCT WARRANTY

SKB Soft Products are fully warranted to the original owner against defects in materials and craftsmanship for one year from purchase. Any defects in workmanship will be covered by SKB. Damages due to accident, improper care, negligence or normal wear, where SKB is not at fault, are not covered on Soft Products. Freight cost to SKB Corporation is the responsibility of the customer. SKB will pay the return freight for warranty product shipped back to the customer.
